Surface Probes Repairs:

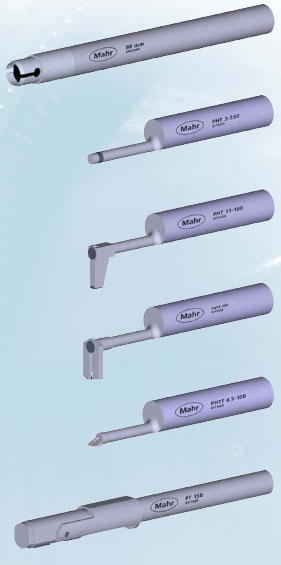

80 mm (3.15 in) pick-up extension
for example, for measuring points located deep within cylinders.

PHT 3-350 pick-up
for measurements in bores from dia.
3 mm (0.12 in).

PHT 11-100 pick-up
for measurements at recessed measuring points, e.g. in grooves from 2.5 mm (0.10 in) wide and up to 7.5 mm (0.30 in) deep.

PHTR 100 pick-up
for measurements on concave and convex surfaces.

PHTF 0.5-100 pick-up
for measurements on tooth flanks.

PT 150 pick-up
Dual-skid pick-up for measurements on metal sheets and roller surfaces according to DIN EN 10049 (SEP).




General Purpose Probes
EGH-1019/EGH-1026

For most surface roughness applications.
EGH-1026
With a 90° conical diamond stylus, 5 µm/ .0002“ radius*.
EGH-1019
With a 90° conical diamond stylus, 10 µm/ .0004“ radius
Parallel Chisel Probe
EGH-1020-W2

For gaging sharp edges or small O.D.’s where probe is perpendicular (in 90°- or 270° position) to axis of traverse. 90° sapphire chisel, 10 µm. / .0004“ radius. Also used with EAS-2421 Vee
fixture for O.D.’s smaller than 6,35 mm, / .25“.
Transverse Chisel Prob
EGH-1020-W1

For gaging sharp edges or small O.D.’s where probe is aligned with (in 180° or closed position) to axis of traverse. 90° sapphire chisel, 10 µm./ .0004“ radius.
Groove Bottom Probe

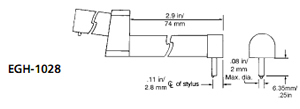

EGH-1028

For measuring the bottom of grooves, recesses and small holes to depths of 6.35 mm/ .25“.
Also used for short lands and shoulders.
With 90° conical diamond stylus, 10 µm/ .0004“ radius.
NOTE: Small Bore and Groove Bottom Probes can only be used in 180° position with the Pocket Surf unit supported in a height stand or other fixture.
Small Bore Prob

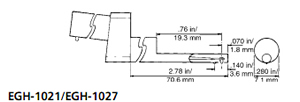

EGH-1021/EGH-1027
For gaging small bores (3,2 mm/ .125“ minimum I.D.) up to a depth of 19 mm/ .75“.
EGH-1027
With a 90° conical diamond stylus, 5 µm/ .0002“ radius*.
EGH-1021
With a 90° conical diamond stylus, 10 µm/ .0004“ radius
